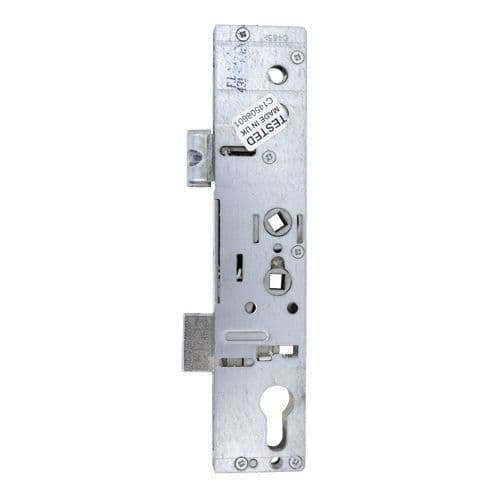

Door Gearboxes
This gearbox is available with a 35mm backset or 45mm backset.
There are versions for both double spindle (92/62PZ)
Operation: Lift lever or double spindle
Latch reversal: Undo the screw in the latch to remove. Reverse and reinsert then replace the screw.
- Case Height: 228mm
- Case Width: Backset + 16mm
- Centres: 92mm/62mm
- Backset: 35mm or 45mm
- Spindle: Double 8mm
